C-307W WHITE MINI DOME CARAVAN/TRUCK CAMERA
Original price was: $99.95.$79.95Current price is: $79.95.
Professionally designed system with industrial leading components/parts.
– CCD camera with 2.8mm wide-angle lens. This offers a super wide field of view angle at 120°.
- Description
- Additional information
Description
Professionally designed system with industrial leading components/parts.
– CCD camera with 2.8mm wide-angle lens. This offers a super wide field of view angle at 120°.
– Most other manufacturers use 3.6mm or 2.1mm lens, the view angle is much narrower. You can see more areas by using 2.8mm lens
– Builtin 12 IR LEDs for over 20ft night-vision view.

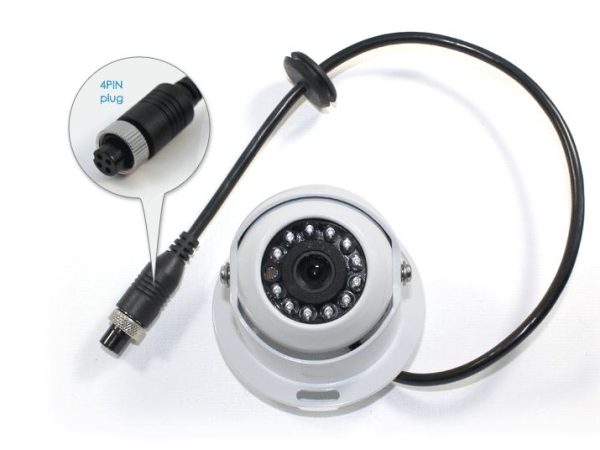

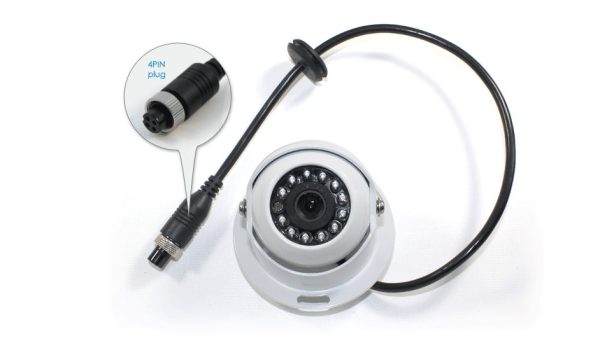

– Power cable with a waterproof aviation type connector.

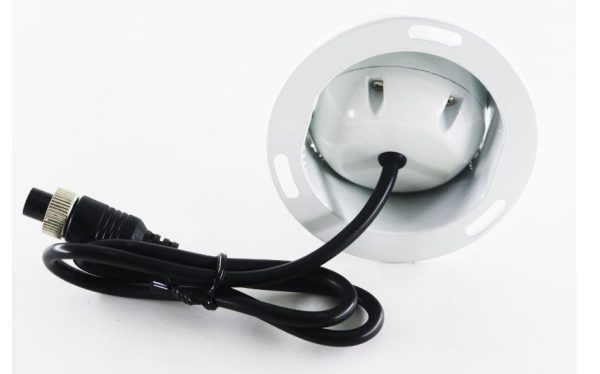

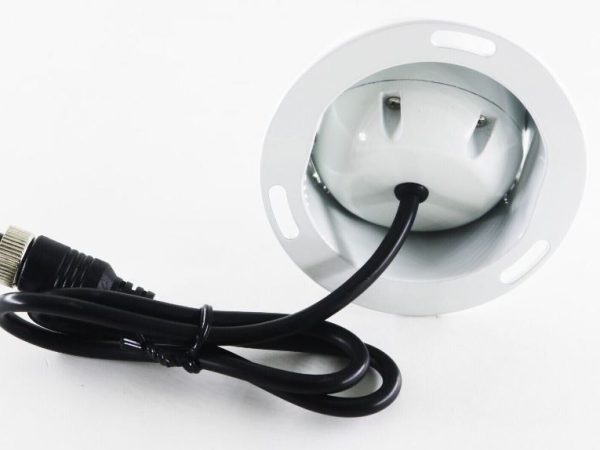

– Waterproof camera body with a sun visor and metal bracket. Easy to mount on any flat surface of the vehicle
– Rubber seat for video cable to go through inside the cabinet without scratching the surface.
– 12-24V power input range to fit most of the medium to large vehicles on the road
– Aviation connectors are used for all connections. This is more reliable and simple to install.
Style | 4 PIN |
| Sensor | 1/3 “SHARP Color CCD |
| Horizontal Resolution | 600TV Lines |
| Effective pixel | NTSC : 710(H) x 682(V) |
| Minimum Illumination | 0LUX( IR LEDs for night vision) |
| View angle | 120° |
| Video Output | 1.0Vp-p75Ω |
| Voltage | DC12V-24V |
| Waterproof grade | IP68 |
| Shockproof | 10G |
| Dimension | 89(W) x 53(H) x 48(D) mm |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 18 × 15 × 10 cm |
