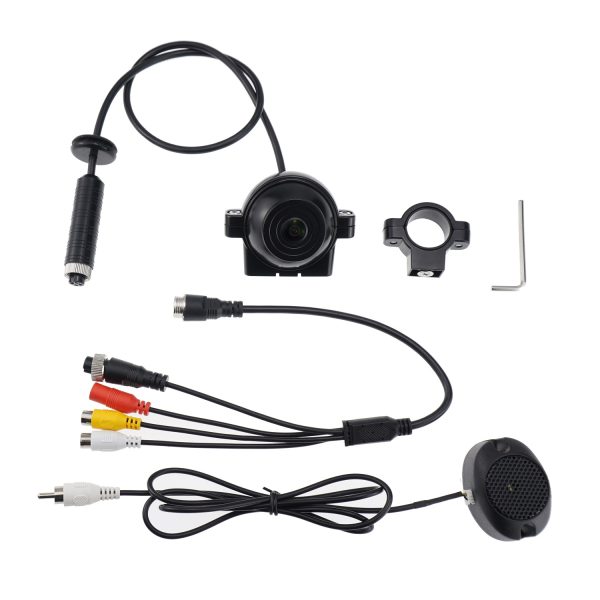

AI Side-View Truck Camera with Pedestrian Detection & Buzzer Alarm

Eliminate Deadly Blind Spots with Intelligent AI Vision Large commercial trucks and logistics fleets constantly face the risk of side-collision accidents during turns or lane changes. Mounted directly under the left or right side mirrors, this AI-powered rear-facing camera acts as a reliable third eye for drivers, actively detecting pedestrians, cyclists, and obstacles in real-time.

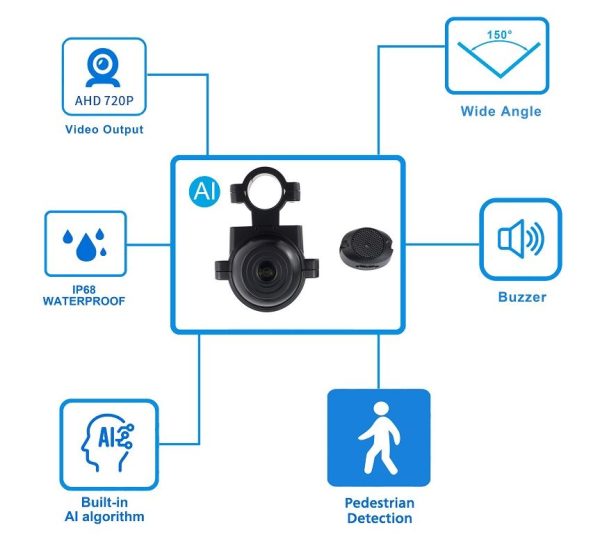

Key Features:

• Built-in Advanced AI Algorithm: No external calibration boxes required. The camera’s internal chip processes live video to identify human shapes instantly, reducing false alarms.

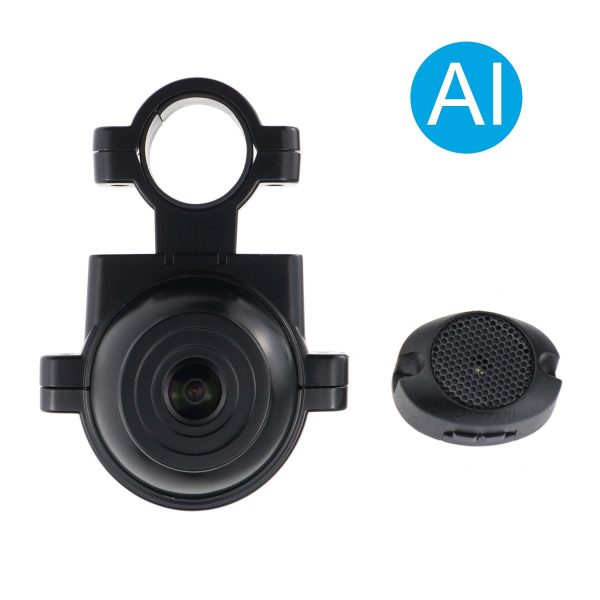

• Real-time Buzzer Warning: When a pedestrian or cyclist enters the dangerous blind spot zone, the internal high-decibel buzzer alerts the driver immediately, preventing accidents before they happen.

• Crystal Clear AHD 720P Video Output: High-definition video feed ensures crisp visibility on the cabin monitor, day or night.

• 150 Degree Ultra-Wide Angle Coverage: Looking backward from the side mirror, the wide-angle lens captures the entire flank of long trailers or delivery vans.

• IP68 Waterproof & Rugged Design: Engineered with heavy-duty housing to withstand severe weather, high-pressure car washes, and dusty highway conditions.

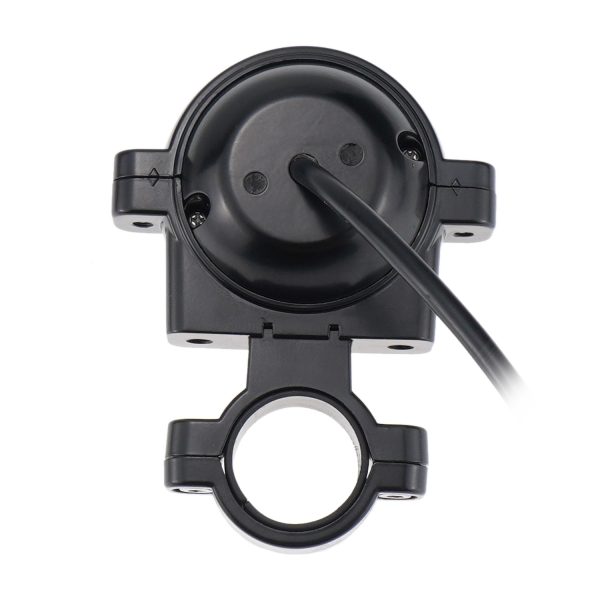

• Specialized Side-Mirror Bracket: Designed for quick and secure clamping onto standard commercial truck and HGV mirror poles.

• Technical Specifications:

  Feature	Specification
  Image Sensor	1/2.9″ CMOS
  Camera materials	Zinc alloy
  Technology	Deep Learning AI Algorithm (Pedestrian/Cyclist Detection)
  Installation Position	Under Left/Right Side Mirrors (Rear-Facing)
  Video Resolution	AHD 720P
  Viewing Angle	150 Degree Wide Angle
  Waterproof Rating	IP68
  Detection Distance	8-10m
  Alert Output	External Audio Buzzer (Included)
  Target Vehicles	Logistics Trucks, Heavy Duty HGVs, Commercial Vans, Fleet Vehicles
  Connector Type	4pin aviation
  Operating Temperature	-30℃～70℃
