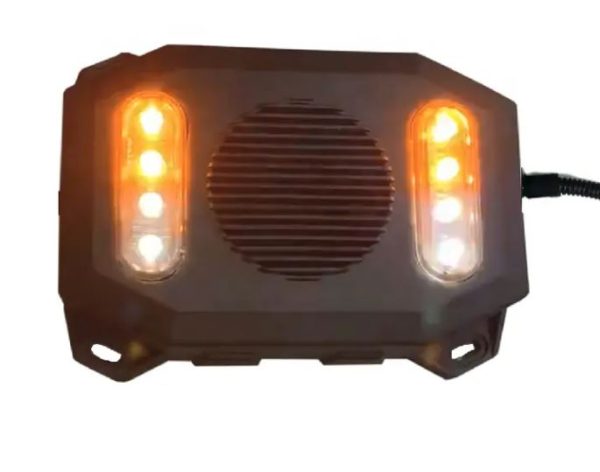

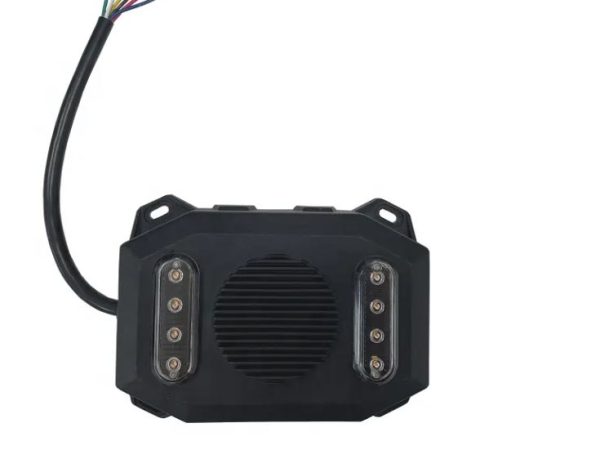

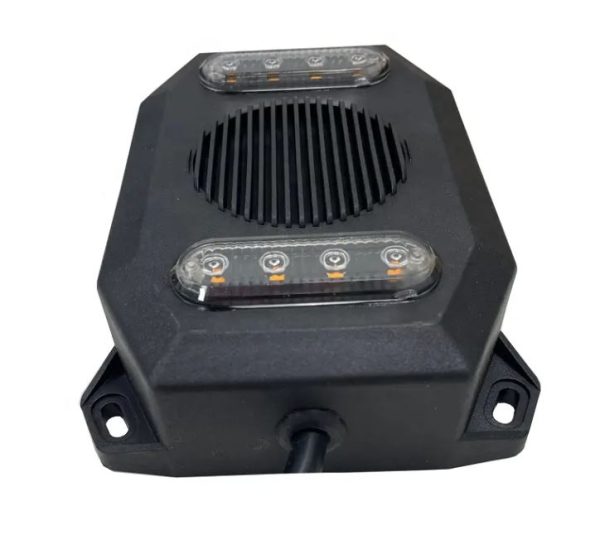

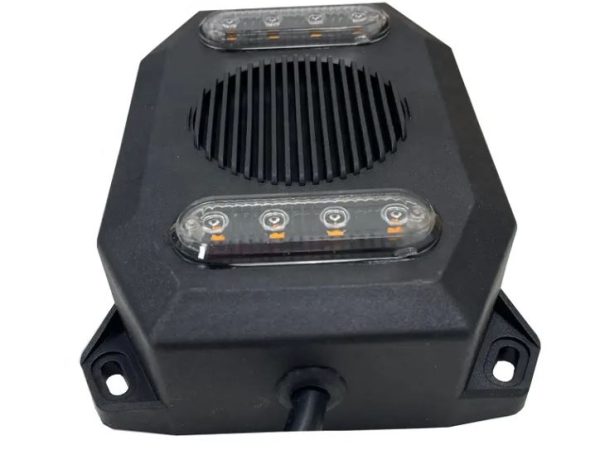

The Left/Right/Reverse turn Alarm is fitted to a range of heavy vehicles to alert pedestrians and cyclists when the vehicle is turning. Turn Audible Right , Left Audible Alarm,Reversing Audible alarm a clear talking audio alert is sounded:- “Caution vehicle is turning Left”
- “Caution vehicle is turning Right”
- .Warning vehicle is reversing .
- The unit is CE & EMC marked.
Suitable for: Trucks, coaches, buses, rigid bodies, Farming Vehicles

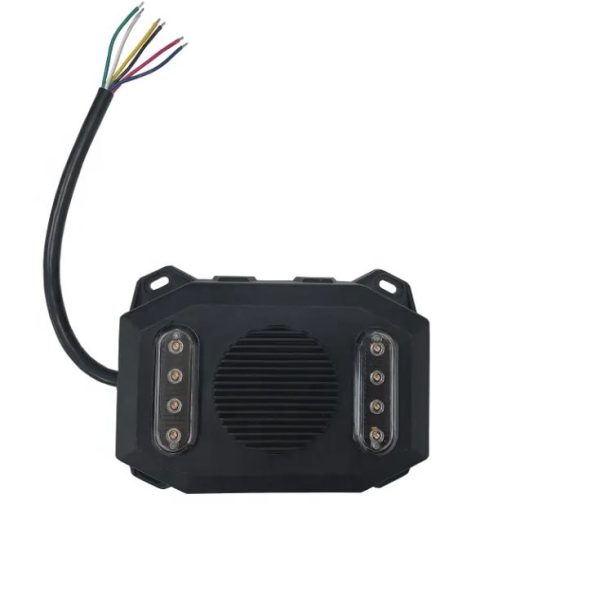

.Wiring Code - BLACK: Ground Connect to chassis.
- RED: Power Input (12/24V) Connect to ACC (12/24V).
- WHITE: Mute wire
- GREEN: Right Turn Alarm Trigger (+)- Connect to right indicator or side detection with positive output trigger.
- BLUE: Left Turn Alarm Trigger (+) – Connect to left indicator or side detection system with positive output trigger.
- YELLOW – Connect to Reverse with positive output trigger.
- NOTE – Hazard Lights will cancel Left or Right warning

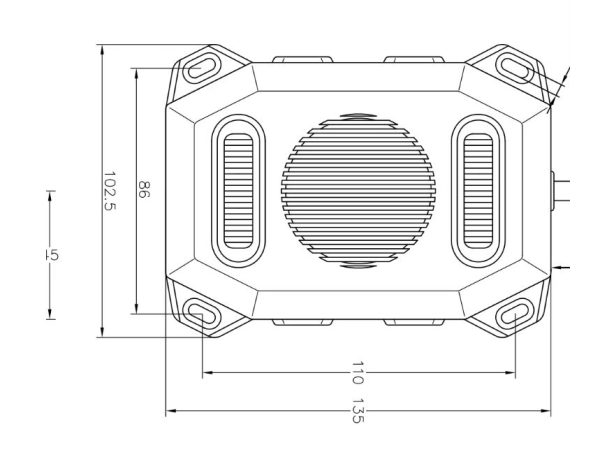

Specification | No. | Item | Parameters | | 1 | rated operating voltage | 24V | | operating voltage range | 12~36V | | 2 | Operating current | 300mA | | 3 | Volume | 90dB | | 4 | Operating Temperature | -40~ +85℃ | | 5 | Storage temperature | -40~ +90℃ | | 8 | waterproof rating | IP69 | | 9 | Net weight | 330g | | 10 | Dimension (L * W * H) | 68mm * 44.5mm *103mm |
|
