C-720T 7″ TOUCH QUAD MONITOR with RECORD MODE+BSD (Blind Spot detection)

Description

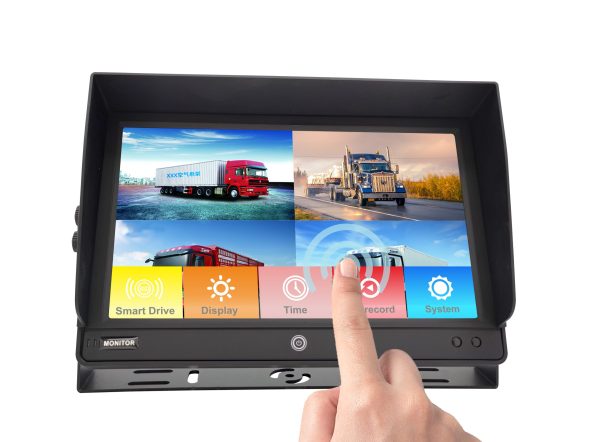

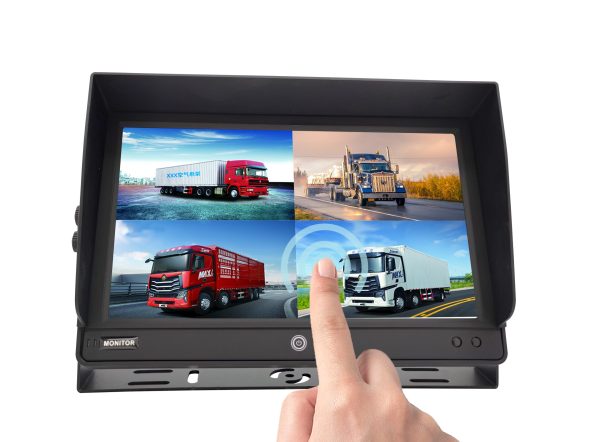

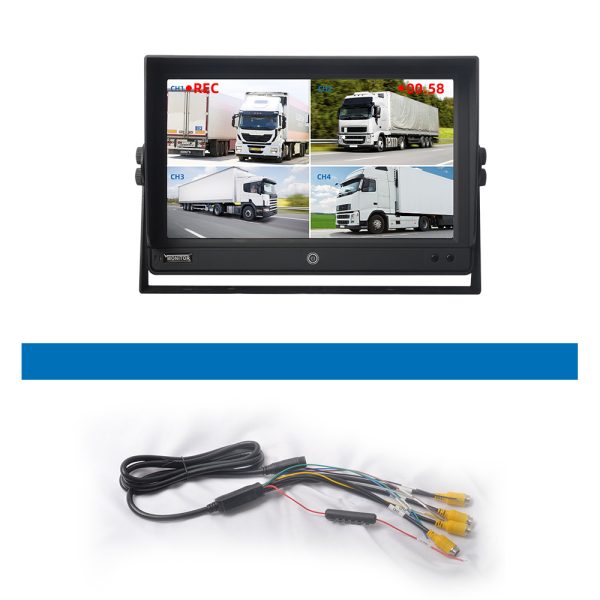

RGS-720T is a high performance 7 inch touch screen colour TFT LCD monitor with built in quad multiplexer. Simply touch the image to get a full screen view. The 4 channel inputs are perfect for rear & side mounted cameras on machinery, heavy duty vehicles, horse floats etc. It comes with single, dual, triple, quad image with trigger wires to automate each camera. The monitor gives a very bright display with good contrast. Easy to setup and use via the touch screen, the RGS-720T makes reversing even easier and  safer.  The monitor also has a SD record function and BSD (Blind Spot detection)

Specifications 7″ multi-screen AHD monitor Full-screen touch）with touch buttons
Resolution 1024*R.G.B*600
Back Light LED,500-700cd/m2
View angle L/R:85°,UP:85°,down:85° degree
Compatible system PAL/NTSC
OSD control Color, Brightness, Contrast, Volume, automatically adjust the backlight brightness
Each video can set mirror/delay time, Language (English, Chinese ，Traditional language）
AV Inputs(B) 4 channel AHD video input, ,

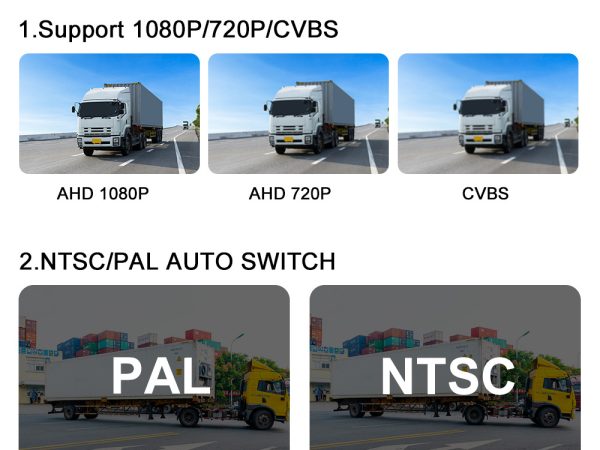

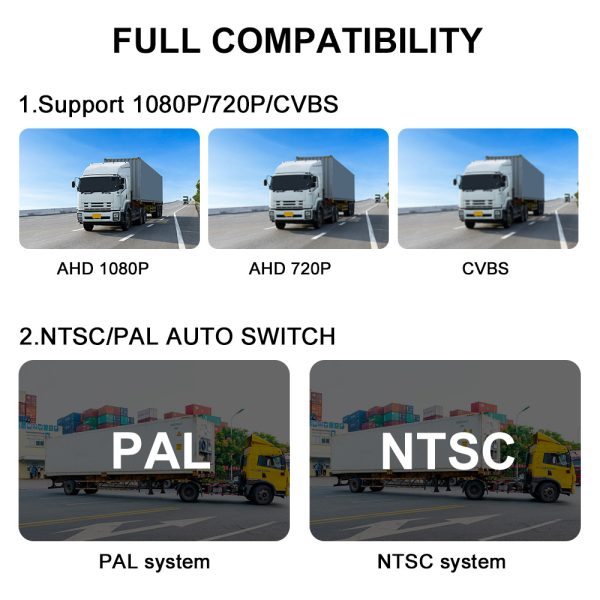

Video signal reception(A/B) Support AHD720P/960P/1080P and CVBS multi-video hybrid input
Full image/2 images/3images/4 images adjustable
4 ways Trig Trigger priority(B) V2>V1>V3>V4, Reverse reference point
Working voltage 12V -36V (minimum input 12V for camera to draw power from mainboard
Montior And Camera Connector RCA/ 4pin connector (Optional)

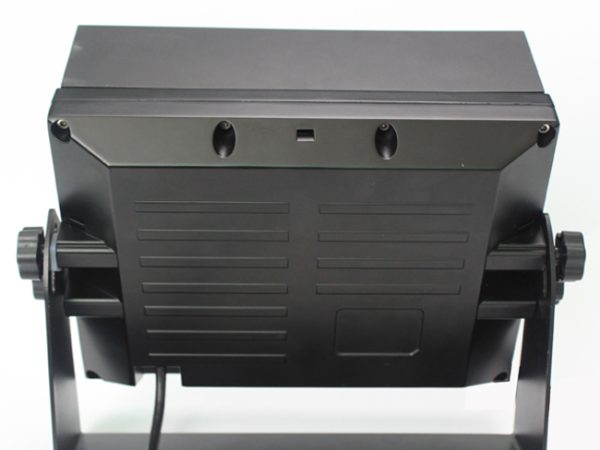

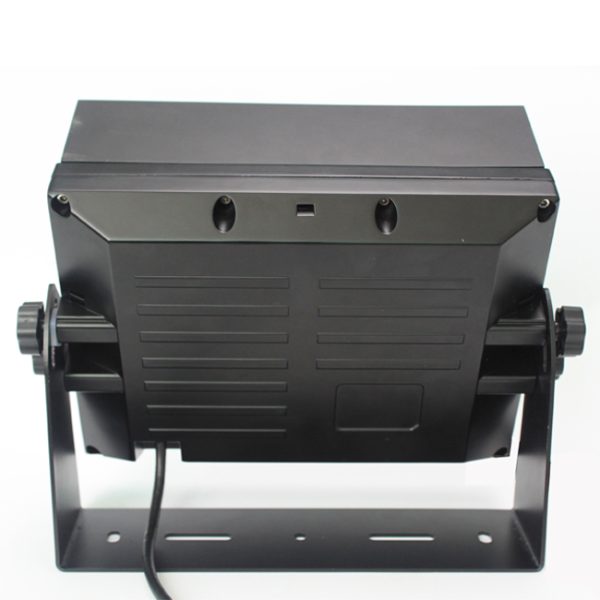

Exterior color Black rubber oiling， Detachable sunshade&MetalU type bracket
Accessories Remote controller, Power supply cable , User manual, Bracket
