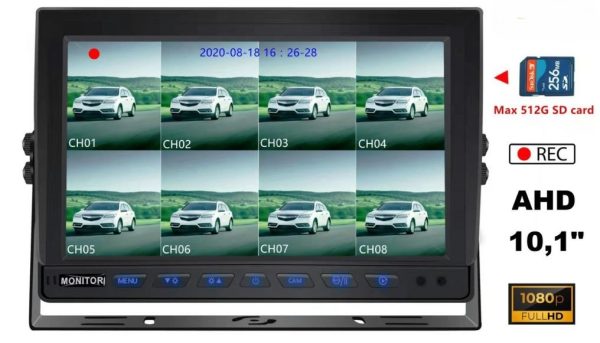

10.1″ AHD 1080P 8 Channel Monitor with DVR

Description

RGS-1018-8  10,1″ hybrid monitor for 8 x FULL HD, HD, CVBS/AHD cameras with recording. A new generation of parking system with DVR, a clear, sharp image during the day, even in low light condition. Also suitable for transport machines for 8 AHD/CVBS cameras with recording to an SD card up to 256 GB, with the possibility of connecting up to 8 any types of FULL HD, HD, CVBS cameras, whether reversing cameras. Brings all the necessary technical means for safe operation and control of motor vehicles and machines.The monitor allows you to switch between different display variants of cameras, depending on how many cameras you have connected and which of them you want to be displayed as the main.

The reversing monitor contains a menu in which you have various options for setting up the LCD monitor and the cameras that are connected to it. Recording function – the monitor also serves as a DVR recorder for recording from cameras – it is stored on an SD card, with support up to 256 GB. The package also includes a remote control, for even easier control of the monitor. The hybrid monitor supports AHD 1080P/AHD 720P/960H/CVBS mixed input in multiple video formats as well as PAL/NTSC frequencies.

Model: RGS-1018-8
Monitor: 10,1“ AHD screen
System: PAL/NTSC 50 /60Hz
Aspect ratio: 16:9
Monitor resolution: 1024 x 600 RGB
Display visibility: 180° from each side
Video resolution when recording: 1280x720P, 1280x960P, 960H
Compatible signal: AHD 720P @ 25/30, 960P @ 50/60, 1080P @ 25/30, CVBS 960H
Inputs: 8 x AHD/CVBS channel
Backlit buttons: yes, blue light
Luminosity: 500-700cd/㎡
Recording: yes, 8 channels

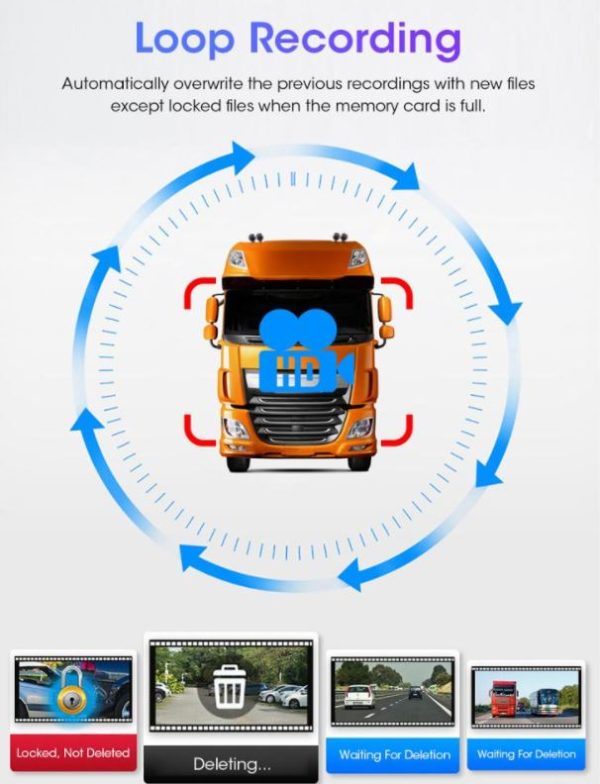

Cyclic recording: yes
Display layout: 1/2/3/4/5/6/7/8 camera
Video format: AVI
Memory: support SD card class 10, up to 256 GB (memory card not included)
Possibility to adjust the OSD: brightness, contrast, volume, language
Power supply: DC 12-36V (voltage 13V is required for power supply even with a camera)
Output voltage: DC + 11,5V/3A
Connector: 4pin connector
Color: black
Remote control: yes
Dimensions: W/H/D 25 x 16 x 3,5 cm
Sun visor: yes, detachable
Operating temperature: -20 to 70° C

Package contents:

1x 10,1″ LCD monitor
1x Monitor mounting bracket

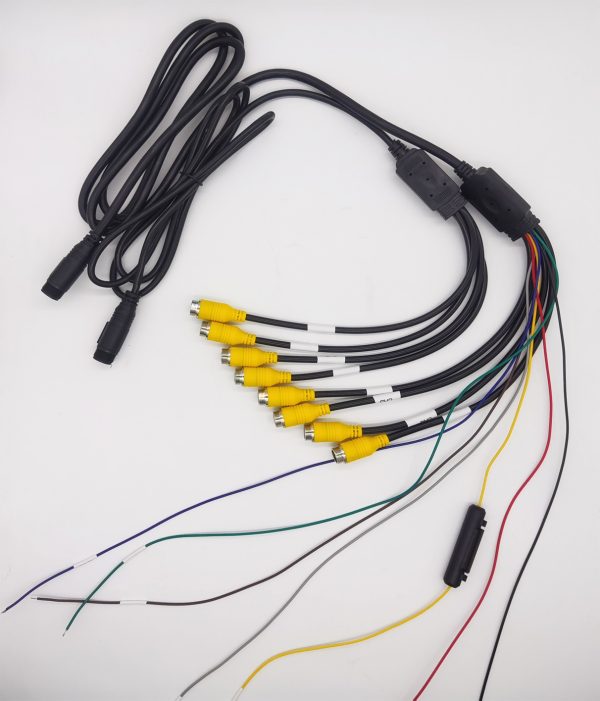

1x Cable with 8 inputs for cameras
1x Remote control
1x Set of screws
1x Manual
